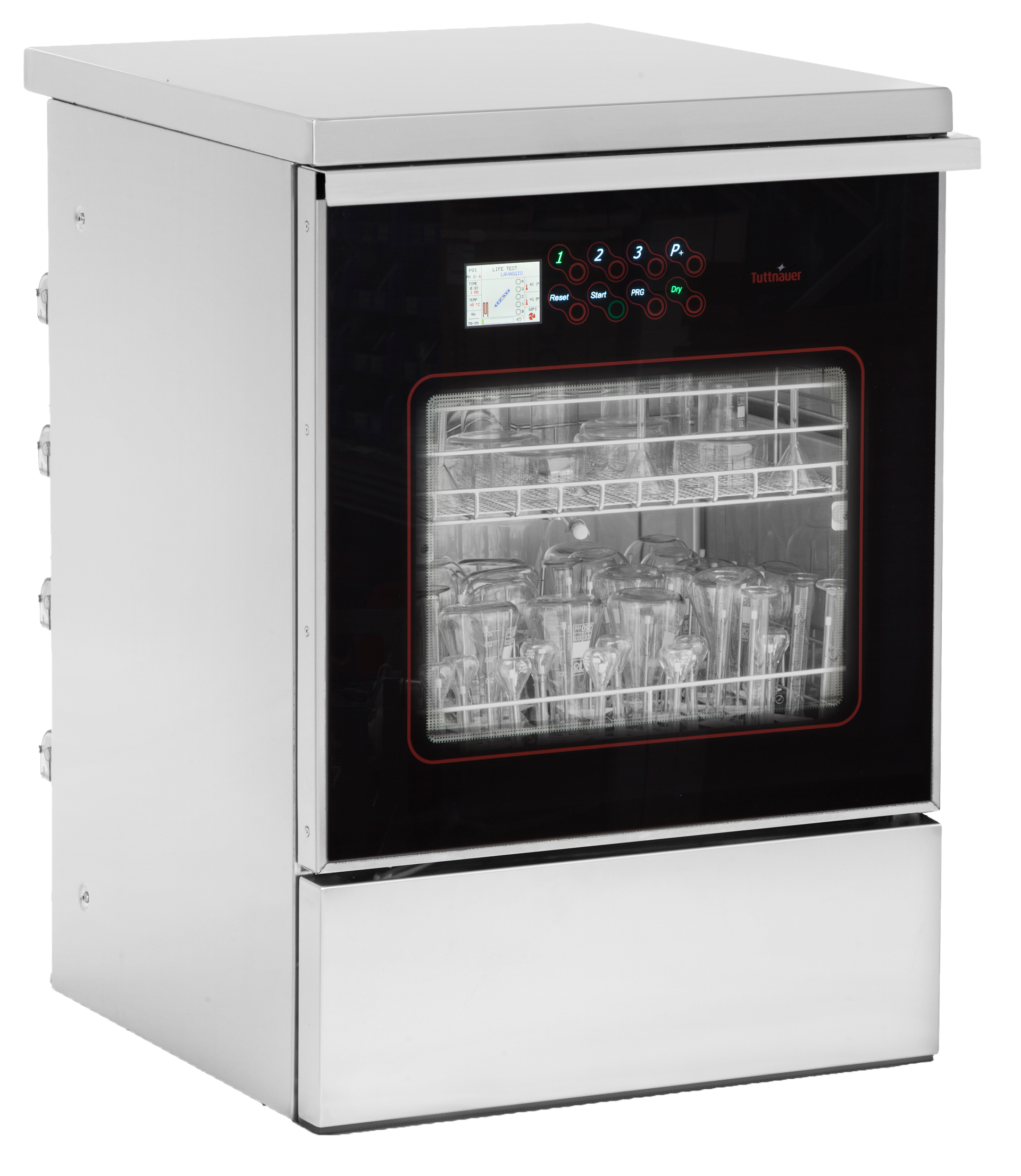

Introducing the Heidolph Tuttnauer Hei-Dro Clean 165UC Glassware Washer! This new under counter glassware washer comes with an assortment of features and accessories to meet all your laboratory washing needs.
Hei-Dro Clean 165UC Glassware Washer
HEPA Filtered Forced Air Drying
Built-in Water Softener
Data logging
Direct Injection Spindles
20 Preprogrammed and 20 Custom Cycles
Spray Arm and Conductivity Monitoring
HEPA Filtered Forced Air Drying
Built-in Water Softener
Data logging

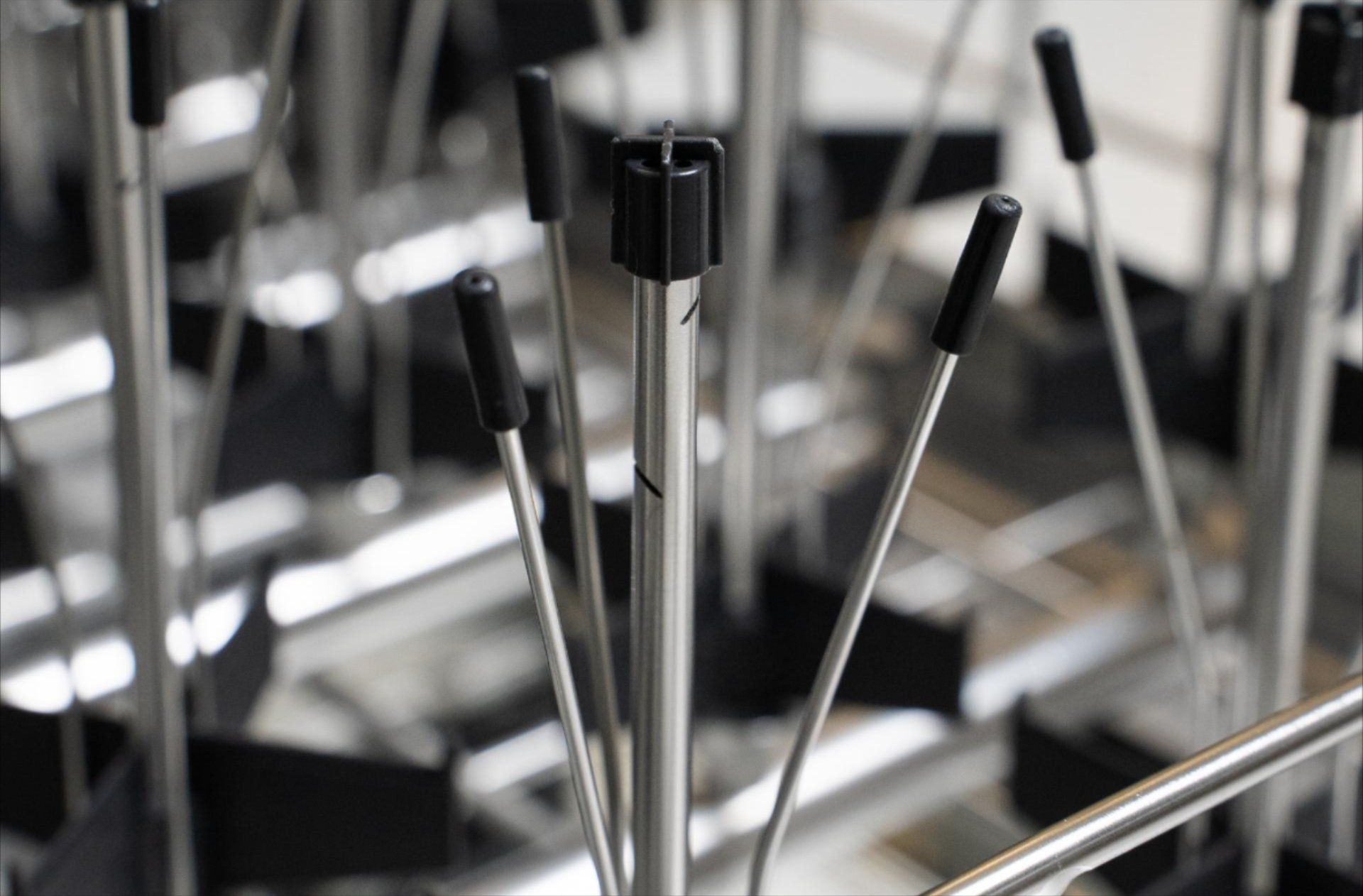

Direct Injection Spindles
20 Preprogrammed and 20 Custom Cycles
Spray Arm and Conductivity Monitoring
ADDITIONAL FEATURES

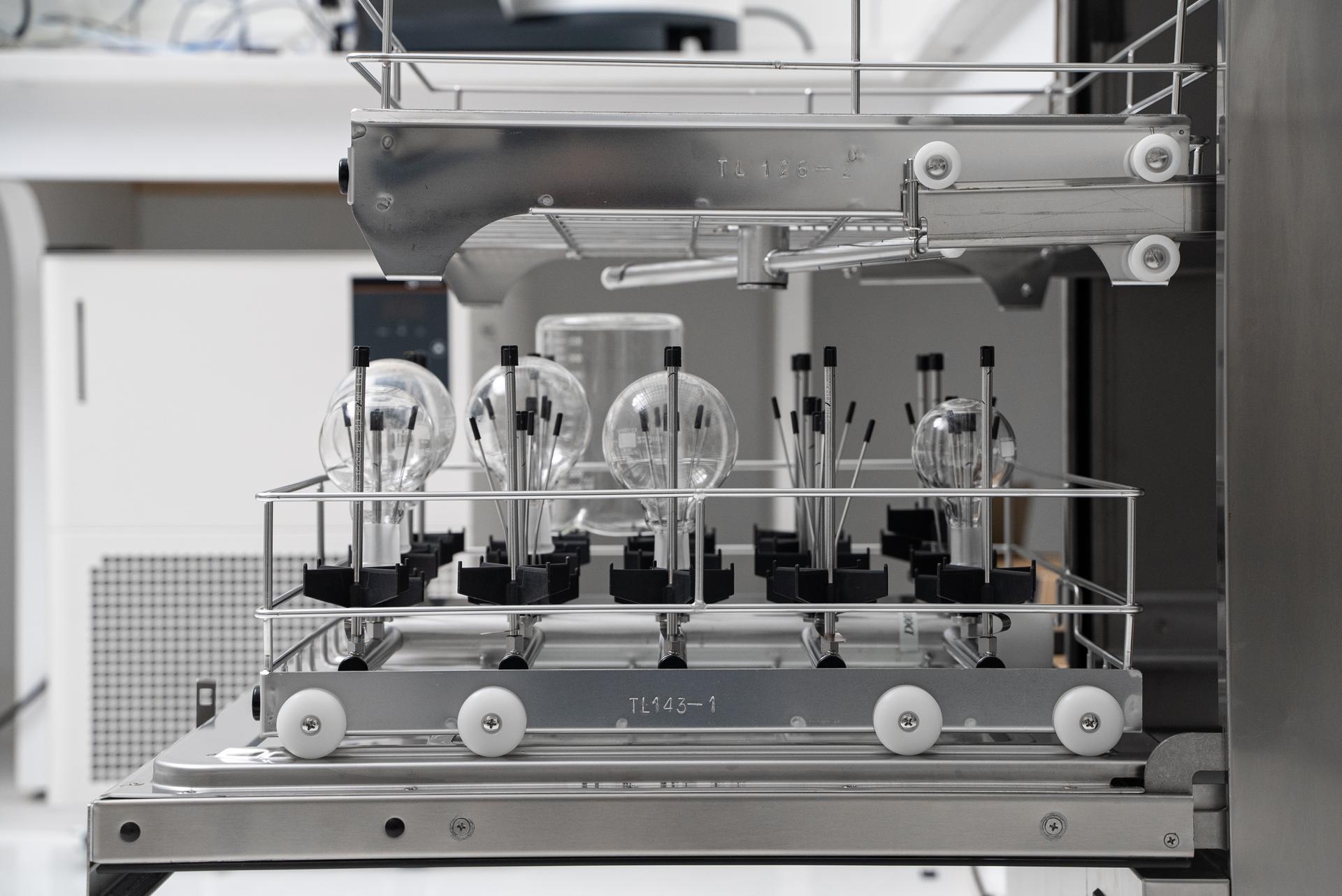

Lower spindle rack with 25 positions and 10 glassware holders
Upper standard rack
Purified water rinse
Spray arm monitoring

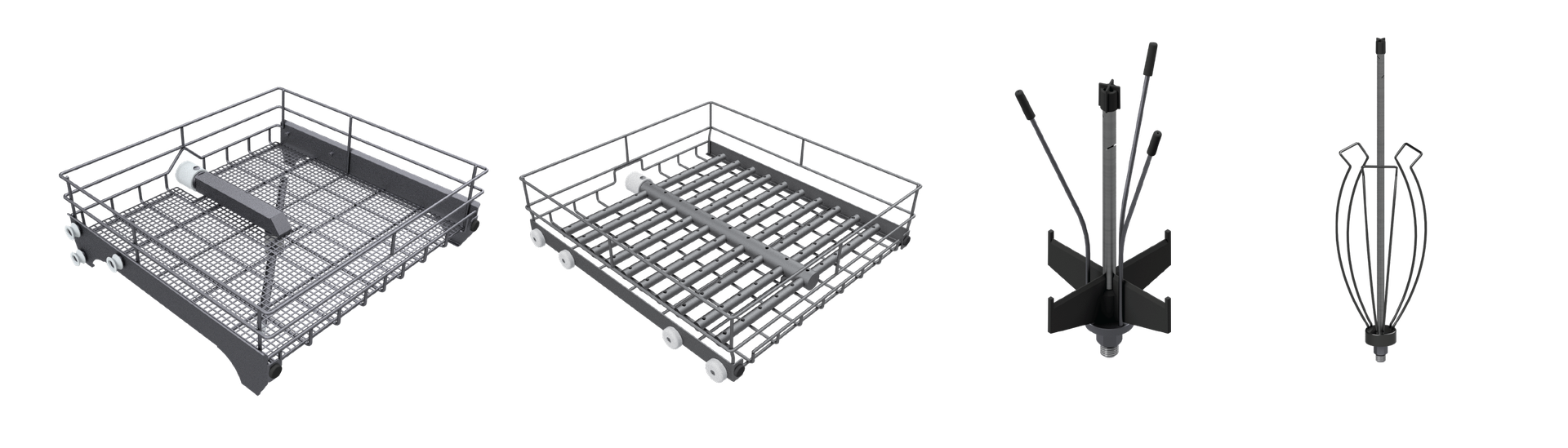

Additional accessories, inserts, and spindles available
SPECIFICATIONS
Cold Water
Temperature
Min. 5°C - Max. 20°C
COLD WATER
Temperature
Min. 5°C - Max. 20°C
Hot Water
Temperature
Min. 45°C - Max. 70°C
HOT WATER
Temperature
Min. 45°C - Max. 70°C
RO/DI Water
Temperature
Min. 5°C - Max. 20°C
RO/DI WATER
Temperature
Min. 5°C - Max. 20°C
Water Pressure and Flow
Recommended flow pressure
Connection thread (with flat gasket)
Length of water inlet hose
Max drain water temperature*
44 psi (Min. 29 psi to Max. 73 psi)
G 3/4” (BSPP 3/4”)
1.85 m/6.07’
93°C/199°F
WATER PRESSURE
AND FLOW
Recommended flow pressure
44 psi (Min. 29 psi to Max. 73 psi)
Connection thread (with flat gasket)
G 3/4” (BSPP 3/4”)
Length of water inlet hose
1.85 m/6.07’
Max drain water temperature*
93°C/199°F
Drain
Max pressure
Max drain pump head height from floor level
Max drain hose delivery
2.9 psi
1 m/3.28’
20 l/min.
DRAIN
Max pressure
2.9 psi
Max drain pump head height from floor level
1 m/3.28’
Max drain hose delivery
20 l/min.

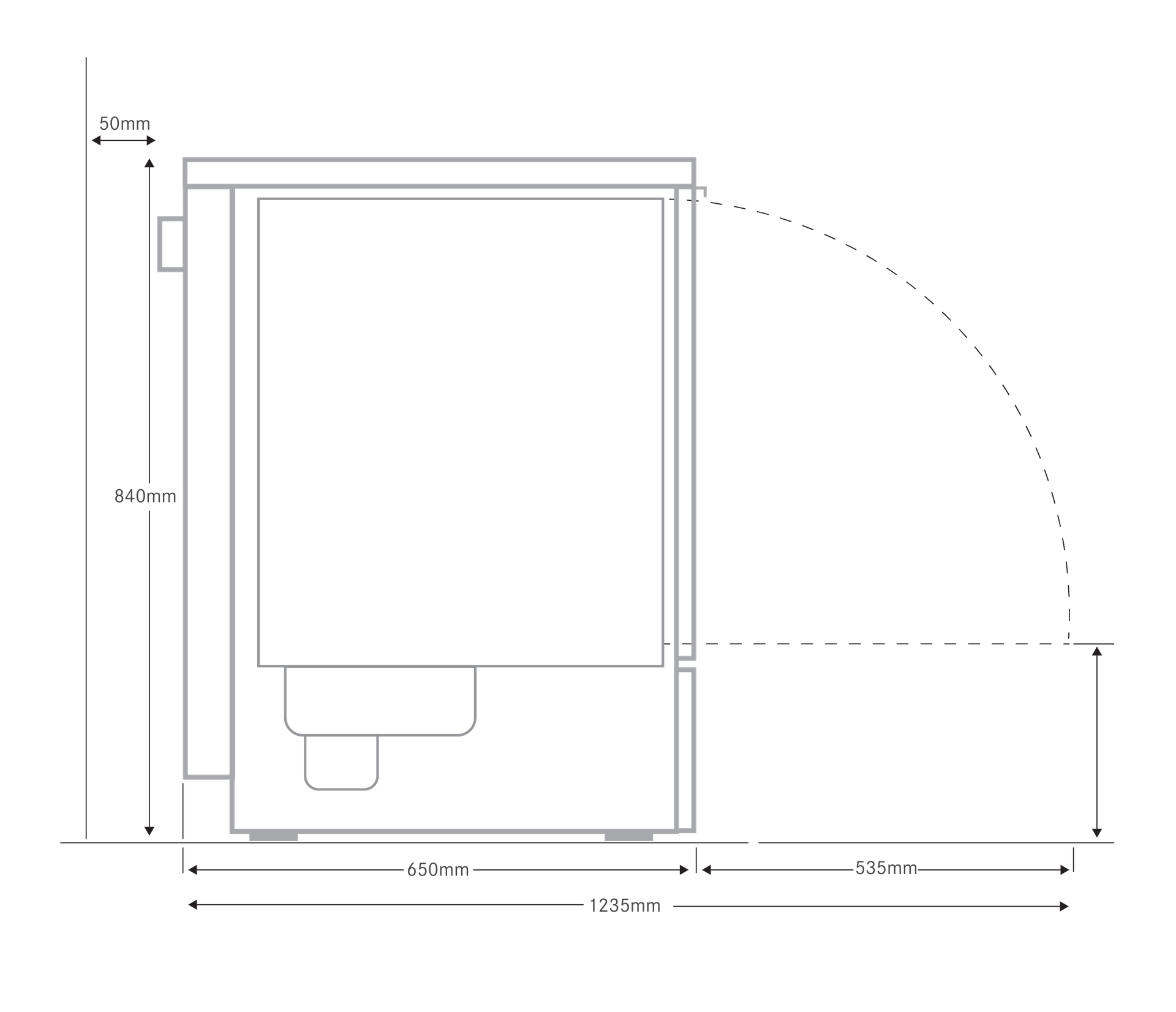

Washer Dimensions
Chamber Dimensions (in) (w x h x d)
External Dimensions (in) (w x h x d)
21.7 x 23.6 x19.7
23.6 x 33.3 x 25.6
WASHER DIMENSIONS
Chamber Dimensions (in)
(w x h x d)
21.7 x 23.6 x19.7
External Dimensions (in) (w x h x d)
23.6 x 33.3 x 25.6
Power Supply
Voltage
Plug Type
230V (208 - 240V), 3-phase, 60 Hz
POWER SUPPLY
Voltage
230V (208 - 240V), 3-phase, 60 Hz
Plug Type
*The value refers to the maximum temperature, obtained only during hot phases, for a duration of about 30 seconds
CLEAN ALL YOUR GLASSWARE
The Hei-Dro Clean 165UC Glassware Washer is designed to sanitize, clean, and dry all labware such as:
Containers:
Beakers, bottles, graduated cylinders, and ampoules
Narrow-neck glassware:
Erlenmeyer flasks, evaporation and receiving flasks, Soxhlet’s, and condensers
Other Glassware:
Petri dishes, funnels, test tubes, Lids, spatulas, magnetic laboratory stir bars, stoppers, etc.
CUSTOMIZABLE CONTROL
Once a cycle is completed, HEPA-filtered forced air circulates throughout the chamber to dry the load. The unit comes with 20 preset programs and has the capacity to store up to 20 user-created custom programs. Different interfaces are available for on-board data logging, connecting to a PC, and an external printer.
REPRODUCIBLE RESULTS AT THE TIP OF YOUR FINGERS

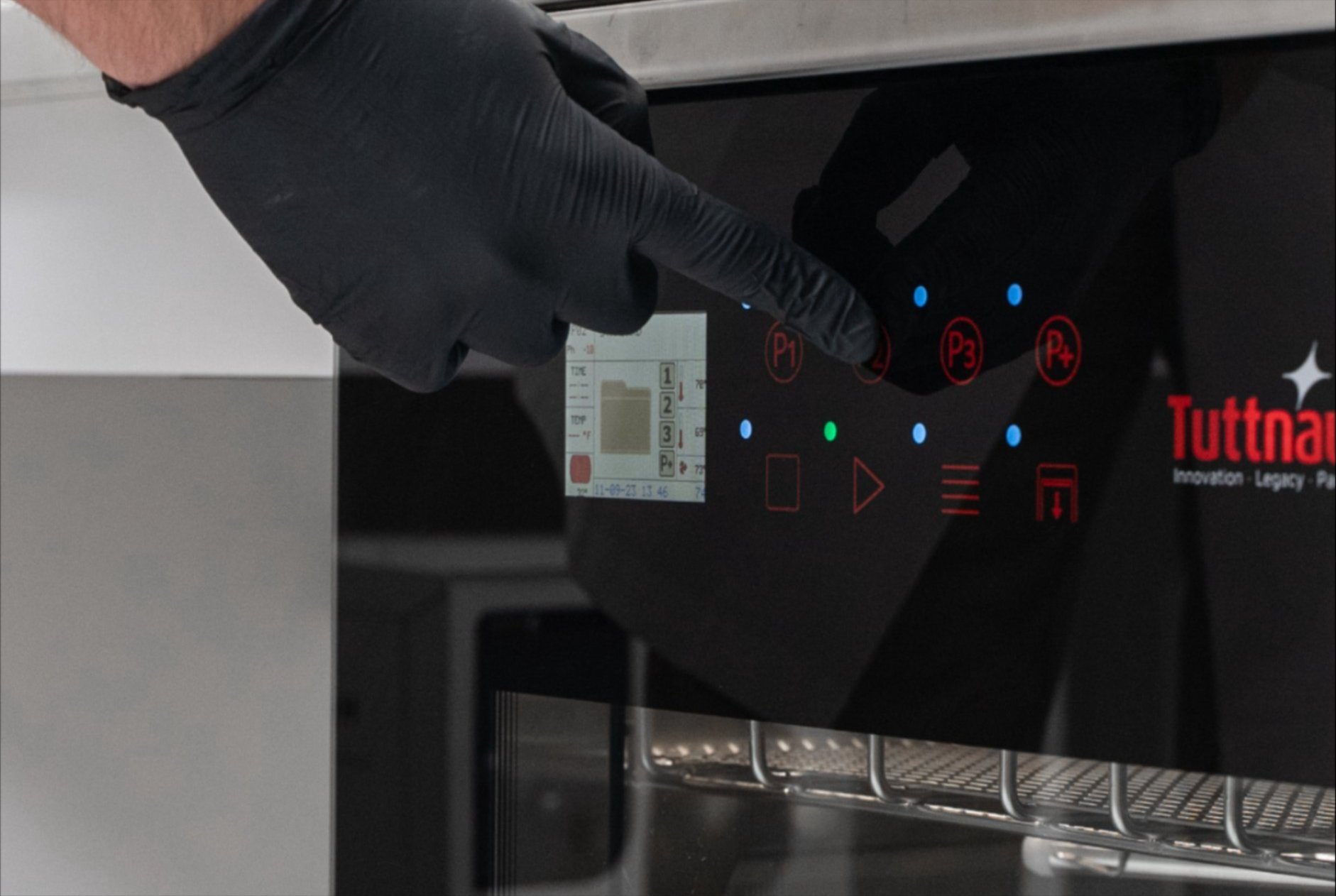

The unit utilizes a color touch screen which provides easy operation and control of wash loads helping to ensure reproducible results. During a cycle, all wash parameters such as water temperature, number of stages, the active stage of the cycle, wash and rinse times, and cycle length are shown on the display.
MORE FOR YOUR WASHER

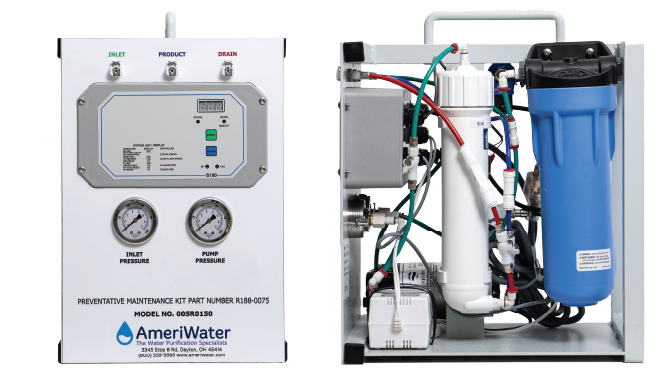

RO Water System*
023213850
Hei-Dro Clean 165UC Washer RO Water Filtration System with 9.2 gal. expansion tank
*RO Water System sold separately

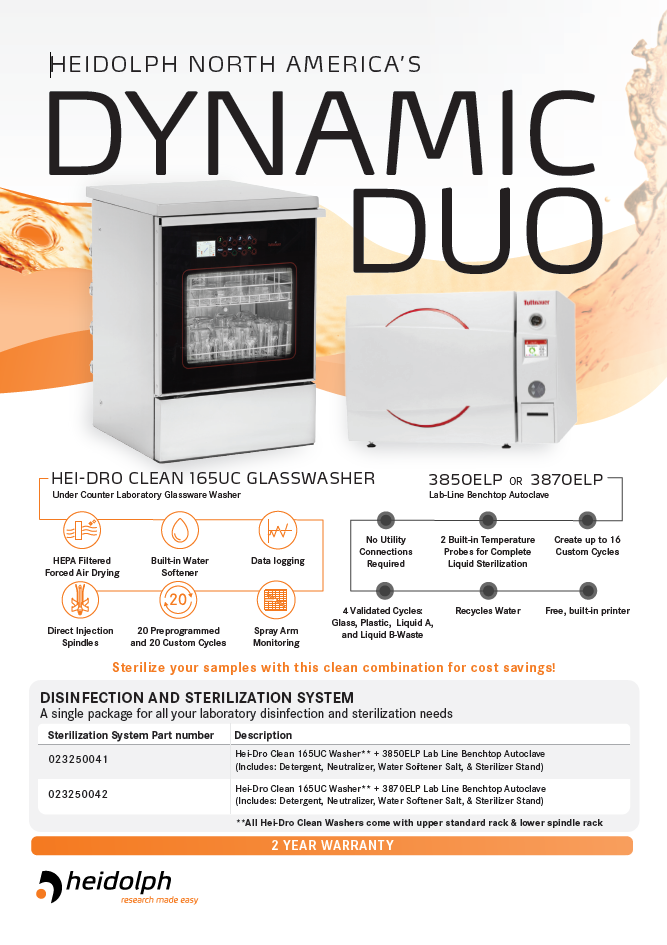

The Dynamic Duo pairs the powerful cleaning abilities of the Hei-Dro Clean 165UC Washer with the versatile sterilization capabilities of the 3850ELP or 3870ELP Lab-Line Benchtop Autoclave.
Included with the package:
- Detergent: 023213791
- Neutralizer: 023213793
- Water Softener Salt
- Autoclave Stand: 023212609
- Chamber Brite: 023212803
- Printer Paper (Pkg. of 5): 023212200
For more information download our
Dynamic Duo flyer here:
